Hot Runner Preform Mold

This product is a high-precision hot runner preform mold conforming to the US SPI Class 101 standard, specifically designed for high-volume, high-cycle PET preform injection molding. It completely solves problems such as hot runner leakage, uneven preform wall thickness (eccentricity), and frequent downtime for maintenance in ultra-high-speed production.

Send Inquiry

Description

Product Introduction

Product Advantages

SPI Class 101 Mold Life Rating

Using Swedish Uddeholm S136 stainless steel (vacuum hardened HRC48-52), significantly extending mold lifespan.

Coaxiality ≤0.05mm

Double taper precision positioning locks the cavity and core, strictly controlling preform wall thickness tolerance and completely eliminating the risk of bottle explosion due to uneven wall thickness.

Conformable Cooling Water Channel

Embedded conformal cooling water channel combined with high thermal conductivity beryllium copper inserts reduces the overall injection cycle to 8-15 seconds, significantly increasing single-machine capacity.

100% Zero Gate Waste

Pneumatic/hydraulic needle valve sequential control ensures simultaneous filling of all cavities with uniform shear heat, eliminating runner solidification and achieving 100% raw material utilization.

Application Areas

Target Industry	Compatible Neck Sizes / Types	Typical Scenarios (Meeting Global Standards)
Beverage & Water	PCO 1881, 29/25, 30/25, 38mm	High-speed, high-volume, and ultra-thin wall preform injection molding with fully automated production.
Personal Care & Cosmetics	Custom shaped threads, flip-top & multi-color preforms	Customized preform production requiring high mirror-surface finish and complex geometries.
Medical & Healthcare	Test tubes, medicine bottles, and medical-grade preforms	Strict compliance with material safety and tight tolerances for Class 10,000 cleanroom environments.
Food & Edible Oil	38mm, 48mm wide-mouth & large-capacity preforms	Heavy-weight, thick-wall preform molding engineered for superior drop-test resistance.

Manufacturing Capabilities

Precision Equipment: Equipped with Makino CNC machining center (Japan), Sodick wire EDM, and Mikron 5-axis machining center. Repeatability accuracy ±0.002mm; mold parts are 100% interchangeable.

Material Certification: Provides original steel material certificates (SteelCert) and heat treatment reports, meeting European and American food-grade (FDA/EU) safety standards.

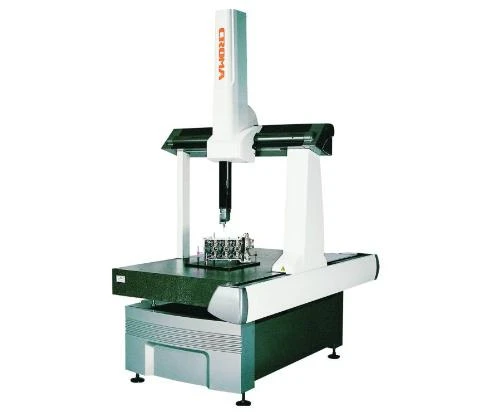

Quality Control: Hexagon CMM full inspection. A 24-hour continuous trial molding process is required before shipment.

Cross-border Delivery: Monthly production capacity of 50+ sets; standard molds delivered globally in 35-45 days. Packaged in fumigation-free, moisture-proof wooden crates conforming to ISPM15 standards.
